Diaphragm Accumulators

Features

  • Capacity up to 213 cu in (3.50L)
  • Gas Port: Schrader gas valve or Metric gas valve
  • Fluid Port: SAE or Metric
  • Cost effective solution for storing energy under pressure
  • Compact and light weight
  • Suited where space and weight are limited.
  • Non-repairable design

Applications

  • Agricultural Equipment
  • Construction Equipment
  • Lubrication Systems
  • Power Generation
  • Energy Transmission and Distribution
  • Air and Gas Compressors
  • Molding
diaphragm accumulator

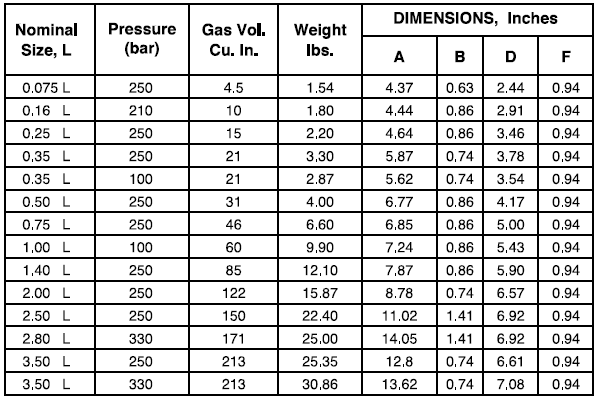

Dimensions

Contact Fluid Energy Controls, Inc. for any special size not listed in the tables
